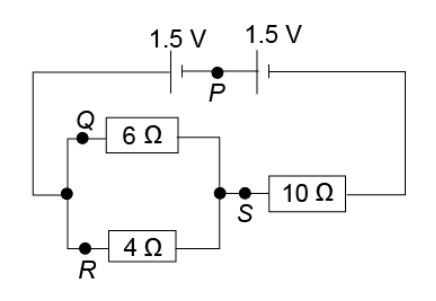

In the circuit shown here, at which point is the current least?
P
Q
R
S
Total Voltage =(1.5+1.5)V =(1.5+1.5) V =(1.5+1.5)V
=3 V =3 \mathrm{~V} =3 V
Total Resistance =(16+14)−1+10 =\left(\frac{1}{6}+\frac{1}{4}\right)^{-1}+10 =(61+41)−1+10
=(2+312)−1+10=125+10=625Ω \begin{array}{l} =\left(\frac{2+3}{12}\right)^{-1}+10 \\ =\frac{12}{5}+10 \\ =\frac{62}{5} \Omega \end{array} =(122+3)−1+10=512+10=562Ω
V6=(16+14)−1625×3=125×562×3=0.58 VIQ=0.586=0.096 AIR=0.584=0.145 AIS=(3−0.58)10=0.242 A \begin{aligned} V_{6} & =\frac{\left(\frac{1}{6}+\frac{1}{4}\right)^{-1}}{\frac{62}{5}} \times 3 \\ & =\frac{12}{5} \times \frac{5}{62} \times 3 \\ & =0.58 \mathrm{~V} \\ I_{Q} & =\frac{0.58}{6}=0.096 \mathrm{~A} \\ I_{R} & =\frac{0.58}{4}=0.145 \mathrm{~A} \\ I_{S} & =\frac{(3-0.58)}{10}=0.242 \mathrm{~A} \end{aligned} V6IQIRIS=562(61+41)−1×3=512×625×3=0.58 V=60.58=0.096 A=40.58=0.145 A=10(3−0.58)=0.242 A
Here, IQ<IR<IS\ I_{Q} < I_{R} < I_{S} IQ<IR<IS
A cell of negligible resistance and emf 222 volt is connected to a series combination of 2,32, 32,3 and 555 ohm. The potential difference in volts between the terminals of 333-ohm resistance will be:
